Easy Clear Clear Vinyl PVC Roller Blind
Easy Clear is a clear vinyl outdoor shade made with 610 g/m² PVC .

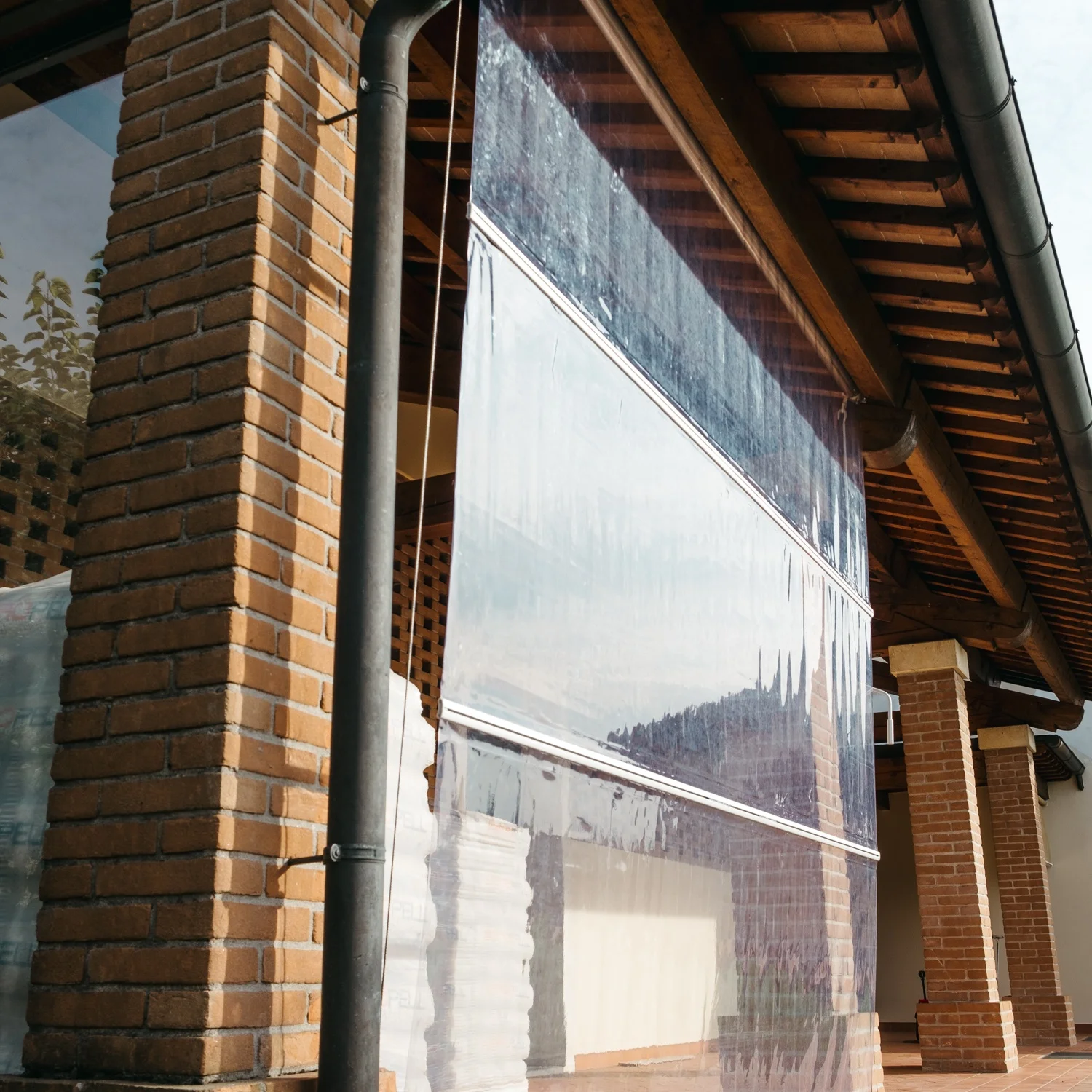

This material is elegant and soft to the touch but at the same time extremely robust and suitable for sheltering from harsh winters. Ideal for taking advantage of the porch, terrace, balcony or to close off one side of the pergola.
- "Clear" transparent PVC vinyl film: 610 g/m²
- Reinforcement profile included*
- Aluminium roll and 304 stainless steel fixing plates
- Excellent mechanical qualities and tear resistance
- Made in Italy
It is delivered disassembled so that the roller and each of its components can be easily transported even to the highest floors.
*Roller shades with a width of under 146cm or a height of under 110cm are supplied without a tear-off profile.
N.B. "Roller shades width" indicates the overall distance from plate to plate
Note: 'Width of the roller shade' refers to the total distance from plate to plate.
The fabric is 11 cm narrower than the overall width of the structure.
Choose your accessories and get a 5% discount on the total price!
Description
They can be installed on the ceiling or wall and allow multiple and therefore series installation.
Data sheet
Model | Easy Clear |
Available sizes | Custom made only |
Overall weight | Variable according to the dimensions chosen |
FABRICS | |
Fabric types | Clear®: Transparent PVC Vinyl film |
Fabric weight | Clear®: 610 g/m² |
Waterproofing | Yes |
Seams sealed | Yes, the seams are heat sealed |
Tear resistance / hail resistance | Yes |
Maximum area | 350 x 350 cm |
STRUCTURE | |
Aluminum roller and terminal | Material: Aluminum Color: Silver |
Winder support plates | Material: 316 stainless steel Color: Stainless steel |

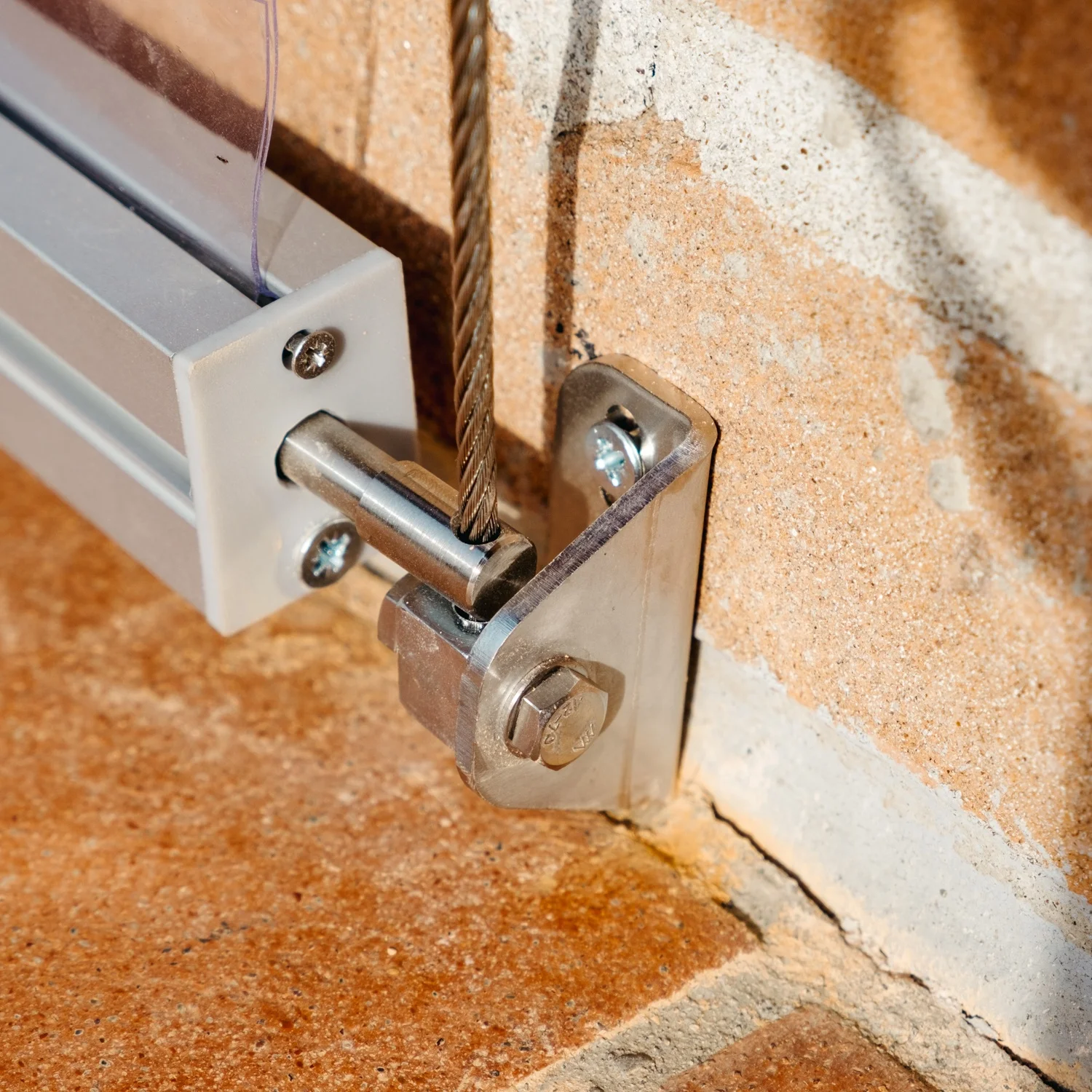

Available versions | With lateral cables or with floor hooks |
PACKAGING | |
Box sizes | Minimum 2 boxes, maximum size 156 x 25 x 17 cm |
Package contents
Instructions & Info
Our research and development team is always keen to make functional components that are easy to assemble while maintaining a distinctive design.
Componentsof complex assemblyAre supplied pre-assembled.
Inside the package are supplied thepaper instructions.
FAQ
How to measure vertical roller blinds?
All measurements refer to the complete awning with roller and fixing plates.
The fabric/PVC film is slightly narrower.
Here are the distances from the outside of the plate to the fabric for the various products (the distances are symmetrical on each side).
Easy Clear and Easy Roll without guide wires:
The fabric is overall 92mm (46+46mm) narrower than the complete structure.
Reef Roll with guide wires:
The canvas is 98mm (49+49mm) narrower overall than the complete structure.

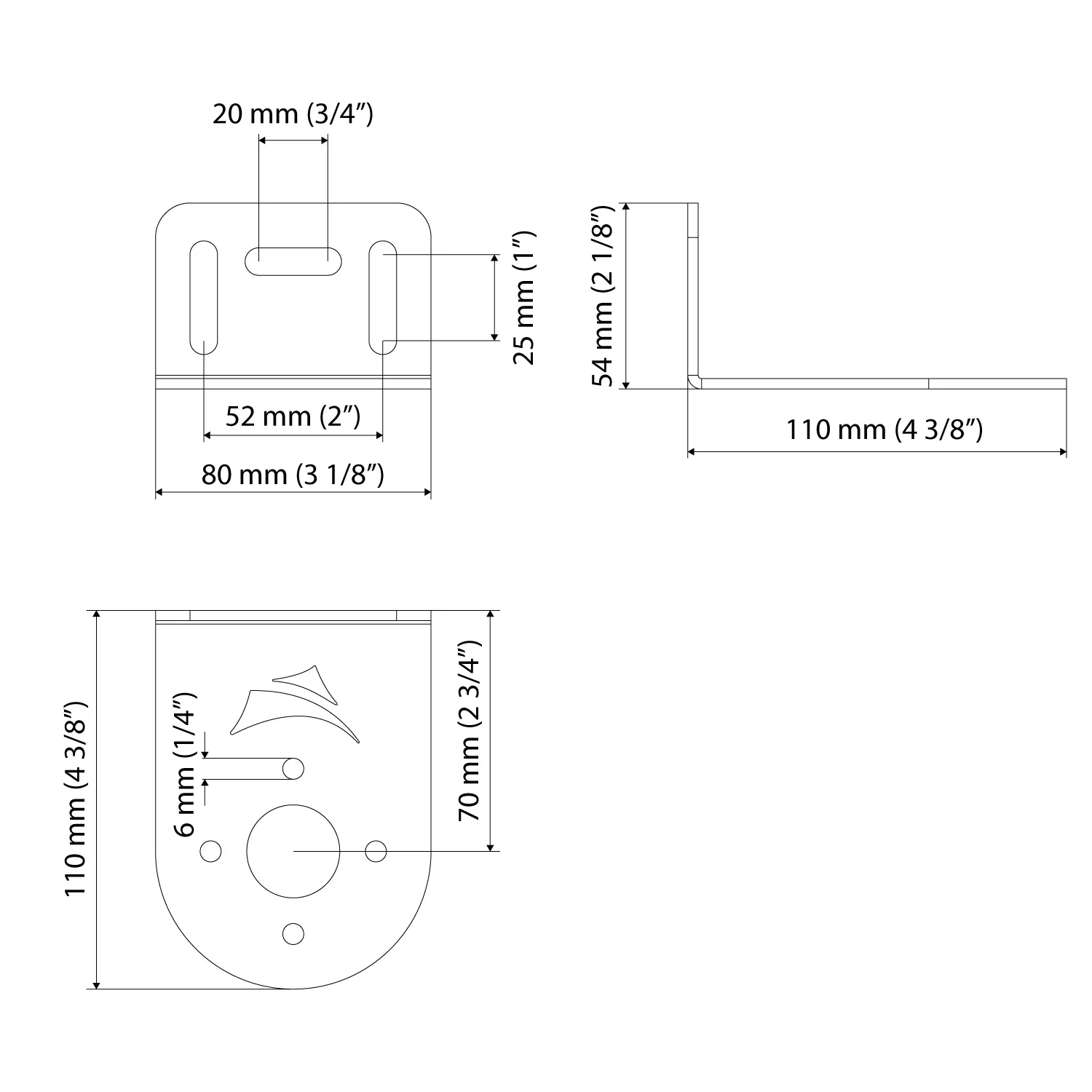

The dimensions of the fixing plates are identical for all Maanta vertical blind models.
