Wall Mounting Kit Muscle x3 Wall anchoring with pulleys

The Wall Mounting Kit Muscle x3 is the most effective system for tensioning shade sails, making them safer from the wind and better able to drain rainwater.

Thanks to the mechanical advantage produced by the pulleys, the Wall Mounting Kit Muscle x3 can triple the force applied, providing tension and strenght.

It is easy to attach to the wall and has a large tolerance: thanks to the perfectly adjustable rope, you don't have to be extremely precise in calculating measurements.

  • Complete kit: sturdy square steel plate, 2 D-shackles, 2 pulleys (1 regular and 1 with cam cleat), 4 metres of nautical rope
  • Provides very high sail tension for greater wind and water resistance
  • Superior plate strength (3 mm thick) compared to competing products
  • Oversized holes

Single or Set: Single Kit
  • Single Kit
  • Box for 3 corners
  • Box for 4 corners
Material: Stainless Steel
  • Galvanized Steel
  • Stainless Steel
Colour Rope: Silver
  • Silver
  • Beige
$91.89
VAT included
truck
truck
Order now and receive it
with UPS Carbon Neutral

YOU CAN TRUST

  • garanzia

    Free design service

  • 1-milione-vendite

    Delivery 24 / 48 hours

  • aiuto-progettazione

    After-Sales Service

The most effective wall anchor for your sail

The force tripler of the Wall Mounting Kit Muscle x3

The Wall Mounting Kit Muscle x3 is the ultimate solution for those seeking an easy and efficient system for anchoring shade sails to walls. Its innovative design includes a pulley system that triples the force exerted on the rope, allowing for optimal tension with minimal effort.

With only 20 kg of applied force, 60 kg lbs of tension is achieved, perfect for ensuring sail stability. The larger pulley integrates a functional and intuitive line cam cleat, which locks the rope at the right time, making it easy to release or secure the sail.

Maximum tension to ensure high performance

The perfect solution for an always taut sail

The Wall Mounting Kit Muscle x3 is designed to provide easy and safe assembly, improving sail performance through excellent tensioning.

The rope releases easily from the cam cleat, providing quick adjustment, while the strong and secure plate allows stable anchoring with its four attachments.

Correct tensioning is one of the most important factors during assembly; a well-tensioned sail provides greater wind resistance, avoiding tears and protecting the anchors, not transmitting blows. Tension also promotes better water drainage, not creating water pockets and increasing the longevity of the entire system.

  • Optimal sail tension
  • Quick and efficient release
  • Stable anchoring

WHY CHOOSING WALL MOUNTING KIT MUSCLE X3

Tensioning

The Wall Mounting Kit Muscle x3, thanks to the multiplication of the force, is the best shade sail tensioning system on the market. The multiplication provided by pulleys seems magical but has specific trigonometric sources.

Adjustment

Thanks to the 4 meters of nautical rope it will be possible to keep the sail and anchor very close, but it will also be possible to keep them away up to a maximum recommended distance of one meter.

Robustness

The sturdy 2mm plate, the 6mm / 900 daN nautical rope and the oversized pulleys make it a safe, resistant over time, definitive anchor.

Self-locking system

No additional accessories to add. The kit features a V-shaped self-locking system, which allows you to hook and unhook the rope quickly.

Quick release

To release the rope from its seat, simply unhook it from the cam cleat, lifting it upward.

Universal

This kit can be applied to any Maanta sail on the market!

Data sheet

ModelWall Mounting Kit Muscle x3
Available variantsSingle Kit, Box for 3 corners, Box for 4 corners
Overall weight0.56 kg
STRUCTURE
Included material1 sturdy steel plate, 2 pulleys (1 regular and 1 with cam cleat), 2 D-shackles, 4 metres of nautical rope
Plate thickness9.5 x 9.5 cm
Spessore piastra3 mm
TypePulley system for sail tensioning
FinishingStainless steel, Galvanized steel
Rope length4 meters
Rope colorSilver/Beige
Hole diameter12 mm
Recommended installationMaximum length between sail and wall kit: 1 meter
Recommended length between sail and wall kit: 35 cm
CompatibilityAll Maanta models
PACKAGING AND WARRANTY
Packaging1 box, dimensions 20 cm x 15 cm x 5 cm
Warranty2 years

OPTIONAL ELEMENTS

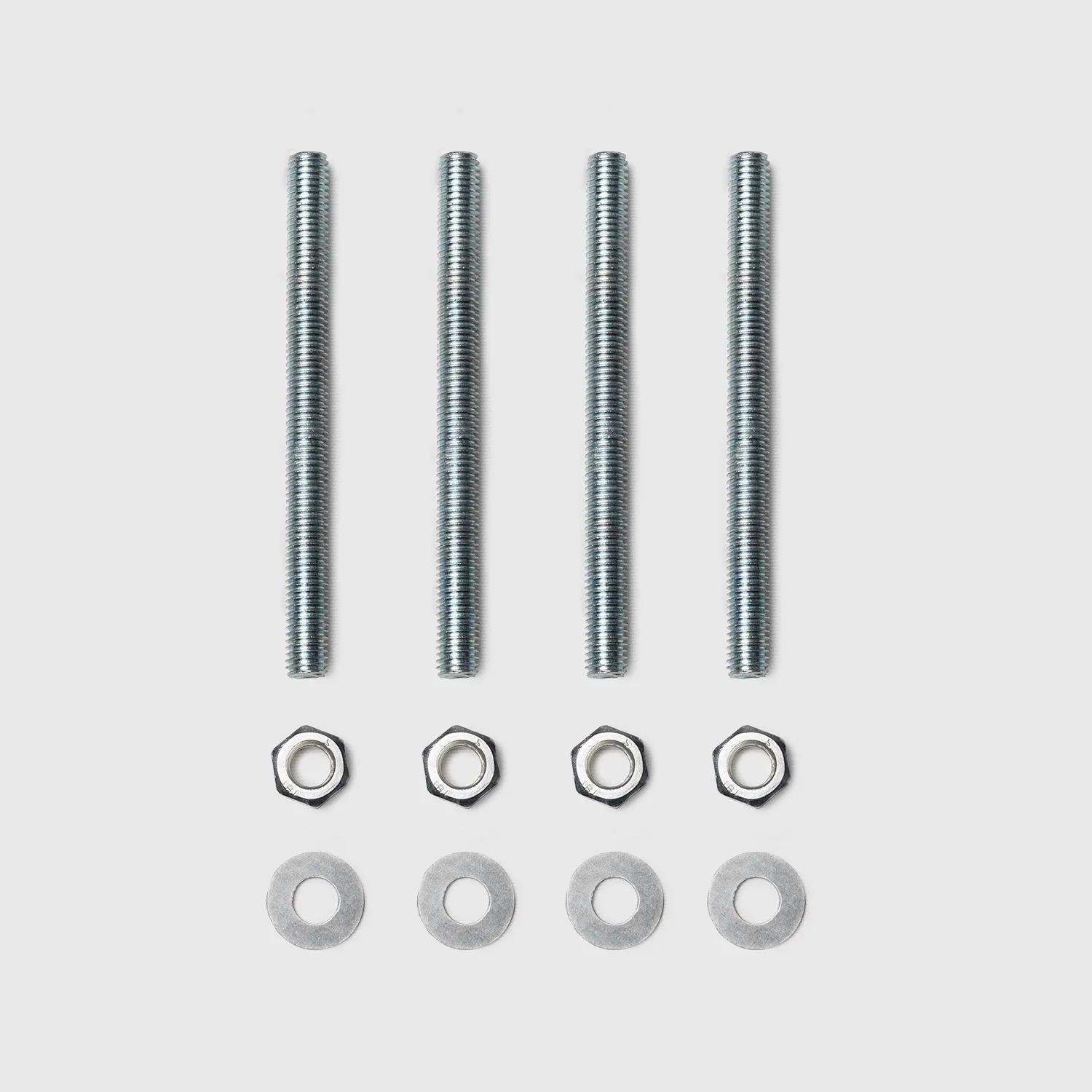

M10 x 12 cm threaded rods

M10 x 12 cm threaded rods in galvanized steel are ideal for fixing the Wall Mounting Kit Muscle x3.

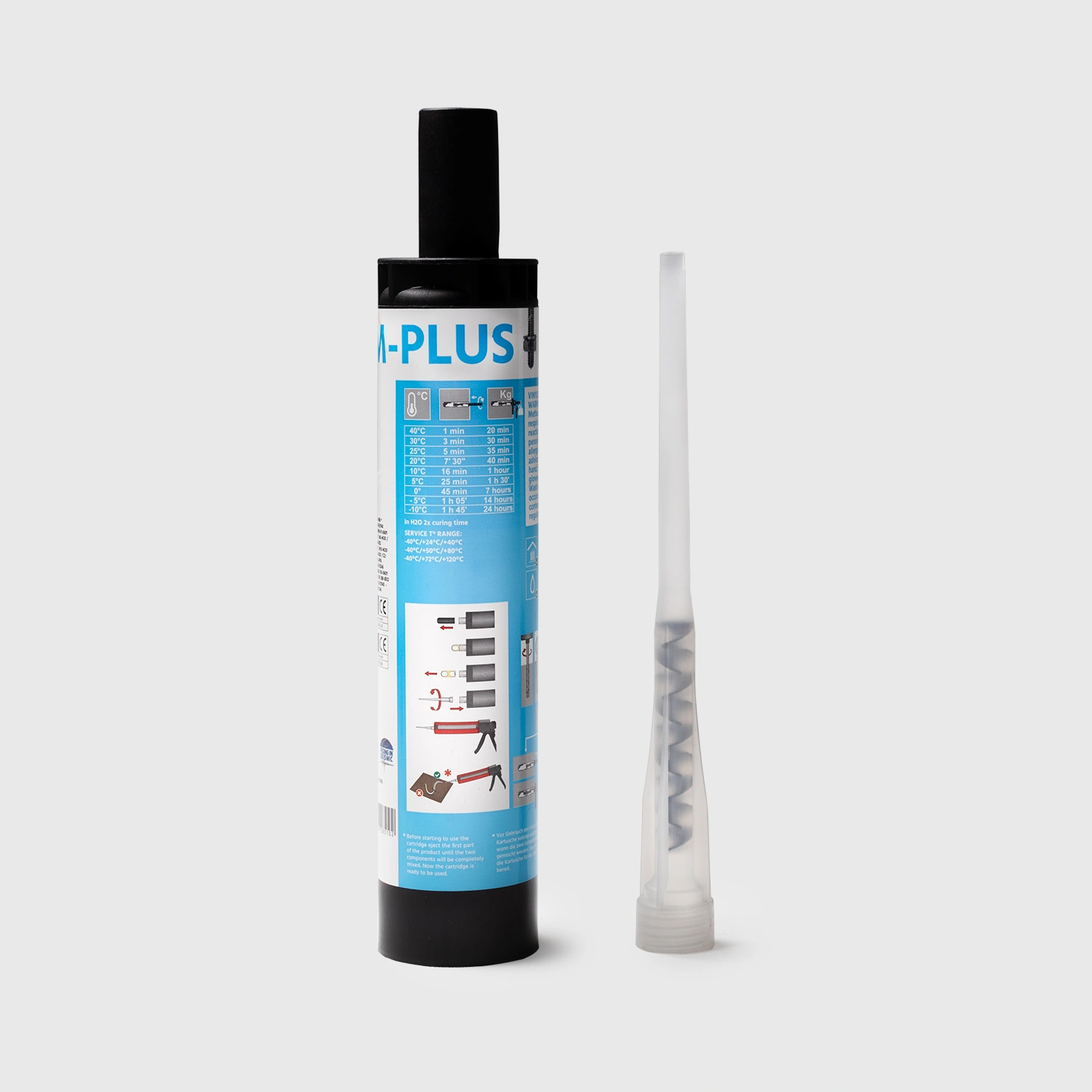

M-Plus chemical anchor

Specifically designed by our research and development team to fix the threaded rods that support the Maanta poles to concrete.

Silicone Gun G2000

The G2000 silicone gun allows a uniform and precise push to the centre of the bottom of the cartridge.

Fischer Thermax

If installation is required on a wall with a thermal insulation present, we recommend the use of the Fischer Thermax kit.

HOW TO INSTALL WALL MOUNTING KIT MUSCLE X3

Installing Wall Mounting Kit Muscle x3 is simple and does not require specialized labor or special equipment. Follow the instructions in the video assembly or download the guide in pdf. If you need further support, our technical department is at your disposal.

Data sheet, package contents, assembly guide and warranty

Download the pdf guide

FAQ

What types of shade sails can I use with the Wall Mounting Kit Muscle x3?

The Wall Mounting Kit Muscle x3 is compatible with all of Maanta's shade sails, offering an optimal tensioning system for any size or type of sail.

How does the Wall Mounting Kit Muscle x3 improve water runoff?

Thanks to the increased tensioning capacity of the Wall Mounting Kit Muscle x3, the risk of water pockets forming on the sail is reduced, thus improving drainage.

Is the Wall Mounting Kit Muscle x3 corrosion resistant?

Yes, the Wall Mounting Kit Muscle x3 plate is made of corrosion-resistant materials, ideal for withstanding the weatherings and extending the durability of the product outdoors.

Can the Wall Mounting Kit Muscle x3 be used on walls with thermal insulation?

Yes, if the plate needs to be anchored to a wall with thermal insulation, we recommend using theFischer Thermax available for purchase here.

What makes the Wall Mounting Kit Muscle x3 different from other anchoring systems?

It has a quick release system, a better tensioning system and higher wind resistance than other standard plates.
